Best Deals NUX MFX-10 Modeling Guitar Effects Processor Guitar Modeling Processor Best Price Now

Best Deals NUX MFX-10 Modeling Guitar Effects Processor Guitar Modeling Processor Best Price Now

Best Deals NUX MFX-10 Modeling Guitar Effects Processor Guitar Modeling Processor Best Price Now Description

You Have To Know NUX MFX-10 Modeling Guitar Effects Processor Guitar Modeling Processor when considering Most beneficial Cost Goods, Uncover on Our Store. ideal the cost NUX MFX-10 Modeling Guitar Effects Processor Guitar Modeling Processor. Watch Offers and Bargain This time.

Feature:
-A total of 55 models, up to eight can be used simultaneously
-19 classic amp and pedal models with A/B channel switching
-Vintage 3-band passive EQ for every amp model
-Parametric EQ with extra middle frequency sweep control for pedals
-12 cabinet models provide two different modes for guitar amplifier or mixer/PA input
-Built-in drum machine with CD quality PCM sounds
-Up to 20 seconds phrase loop with sound on sound
-The AUX IN jack makes it easy to practice along with MP3, CDs and other inputs
-The expression pedal lets you adjust the volume or effects parameters in real time
-Big backlit 160 x 128 TFT LCD for clear, easy viewing of the device’s name, parameters, tuner display etc
-A total of 72 presets: 36 factory + 36 user presets. The A/B switch allows you to use up to 144 presets
-New generation 32-bit DSP, High Performance 24 Bit/ 48kHz AD/DA convertors
- Latest TS/AC (True Simulation of Analog Circuits) Technology duplicates the distortion and tone shape of tube and vintage effect pedals



F5C1CC70F14EC4F7DD82F5651A95F982

Specification:
Effects types: 55
Effect modules: Max. 8 simultaneous modules
Preset memory: User settings: 4Preset (A-D) x 9 (1-9) groups = 36
                             Factory setting : 4 Preset (A-D) x 9 (1-9) groups = 36
                             Total 72 presets (up to 144 presets with AMP A/B switch)
Sampling Frequency: 44.1kHz
AD/DA converter: 24bit
Signal processing: 32bit
Frequency response: 20Hz-20,000Hz ±1dB
THD+N :< 0.01%
Display: 160 x 128 TFT LCD
Jacks: INPUT, LEFT(MONO), RIGHT, HEADPHONES, AUX IN, EXT.PEDAL, DC IN.
Input: -10dBv @ 1M ohm
Output: -10dBv (Output load impedance of 10k ohm or more)
AUX In: -10dBV @ 10k or more
Headphones: 20mW + 20mW (into 32ohm load)
Power: 9V DC, 500mA, ACD-007A (Negative pin)
Dimensions: 330(L) × 202(W) × 72(H)mm
Weight: 2.65kg

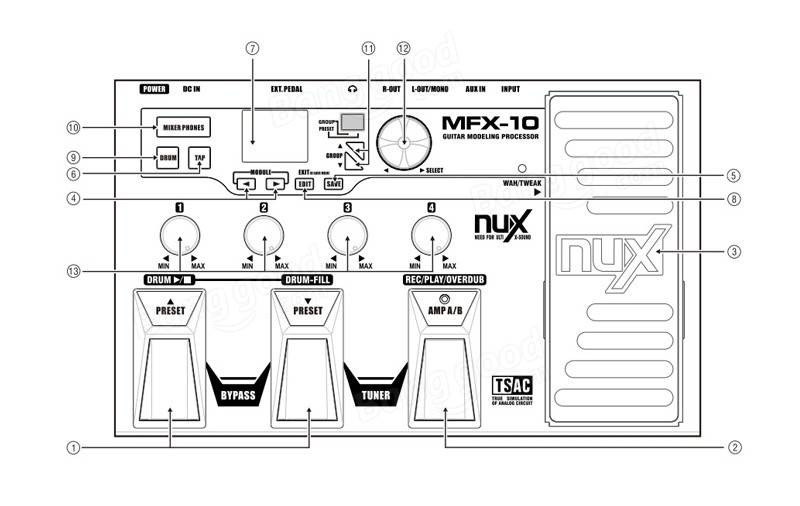

Diagram of MFX-10: Front panel

d1ce8ed5-e826-46a0-9bf0-7e860519ecf1

1.Preset foot switch:Select presets
2.AMP A/B foot switch:Switch two amp channels( press both preset ↓ and AMP A/B together to enter tuning mode )
3.Expression pedal:Provide real-time control of volume, wah or parameter
4.Module buttons:Navigate effects module
5.Save button:Save tone settings that you create by using the panel knobs and pedals
6.Tap button:Set overall tempo, allow you to sync the delay time to the tempo of the song
7.Display:Show working status (different modes)
8.Edit/Exit:Stop save procedure or return to last mode (in Save mode)
9.Drum button:Control built-in drum and loop machine
10.Mixer/phone button:Connect item to a recorder, a hi-fi system, headphones or other audio devices
11.Group button:Select group
12.Select knob:Choose effect for each module in live mode.
13.Knobs 1-4:Adjust parameter of effect in the module

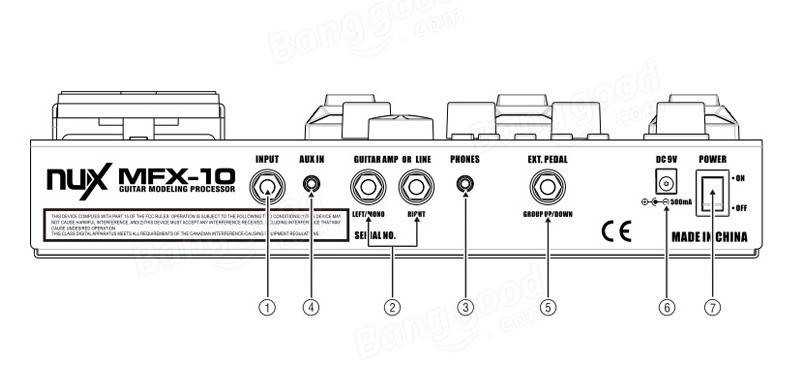

Rear panel:

5b360868-ff58-4b0a-b275-51fe89f098b3

1.Input:Connect instrument to this high-impedance input
2.Left/ Mono and Right output:Connect processor to guitar amplifier
3.Phones:Connect stereo headphone to this 1/8 inch jack
4.AUX In:Connect MP3 or CD player
5.EXT. pedal:Connect two external pedals
6.DC In:Connect DC 9Vpower adapter
7.Power:Turn MFX-10 on or off

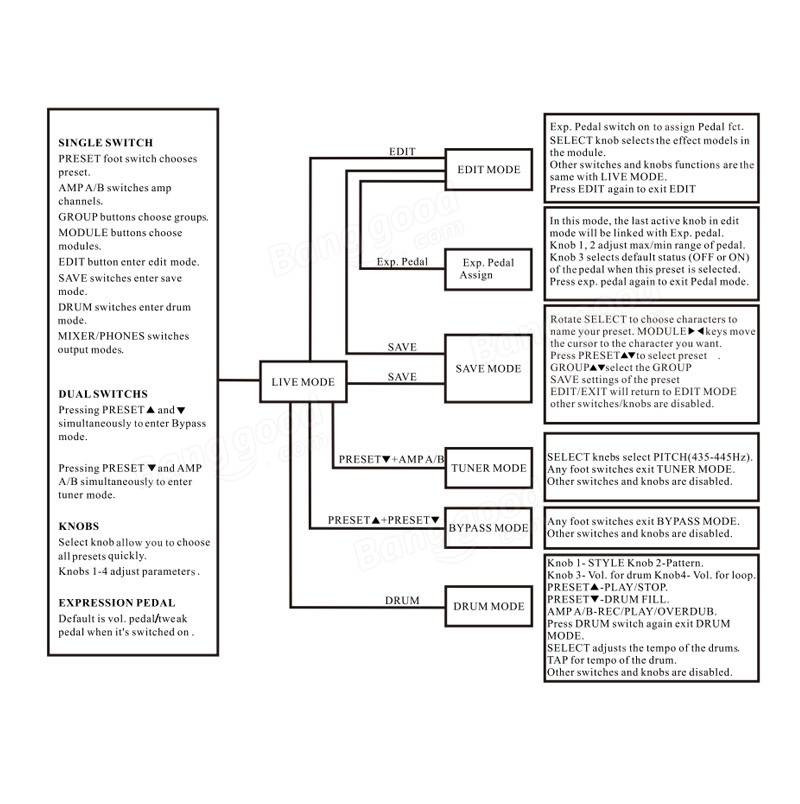

Operation Instruction:

031c997c-5520-41b4-bb8d-5405500e477f

Package Included:
1x Effects Processor
1x Adapter
1x Manual
