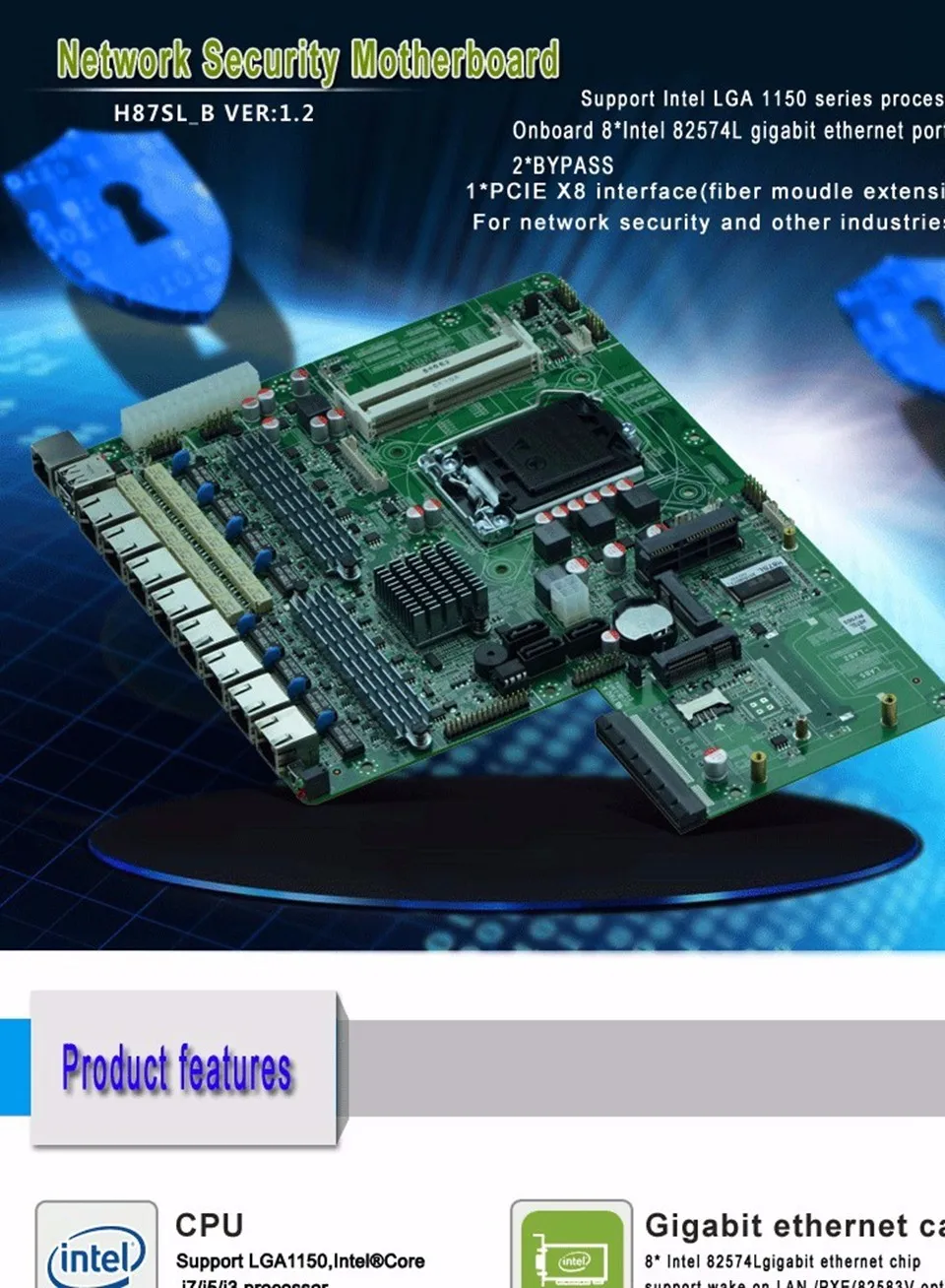

8 ethernet ports Firewall industrial embedded Netwok router motherboard H87SL_B for Support LGA1150 With 2*bypass /1*VGA /8*USB

Description



Model NO.

H87SL _B VER1.2

CPU

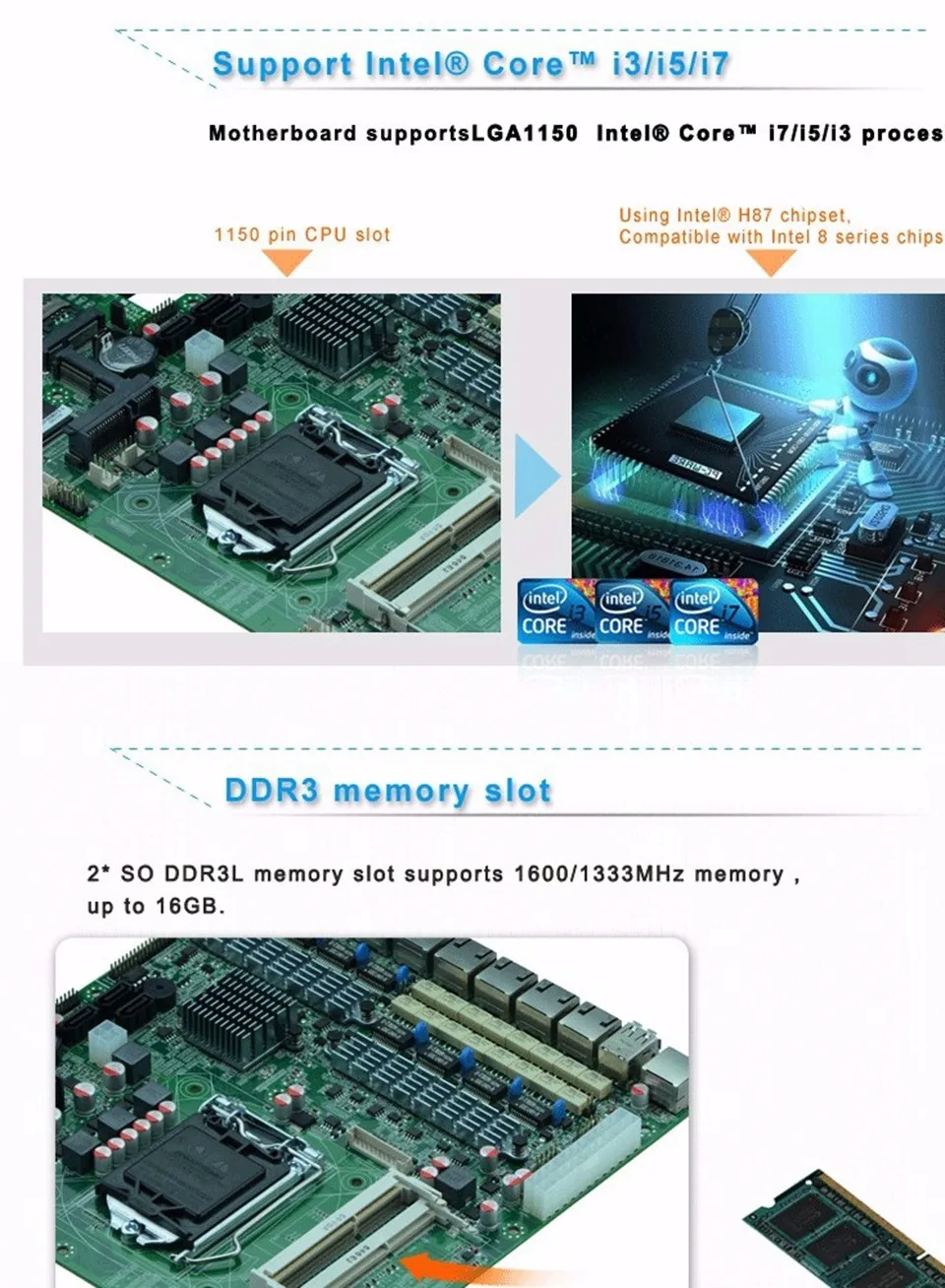

Support LGA1150 4th  Intel® Core™ i3/i5/i7 Pentium / Celeron processor

Chipset

Intel® H87 High-speed chipset, Compatiable with Intel 8 series Chipset

Memory

2* SO DDR3, Support 1600/1333MHz Memory ,Up to 16GB

Display

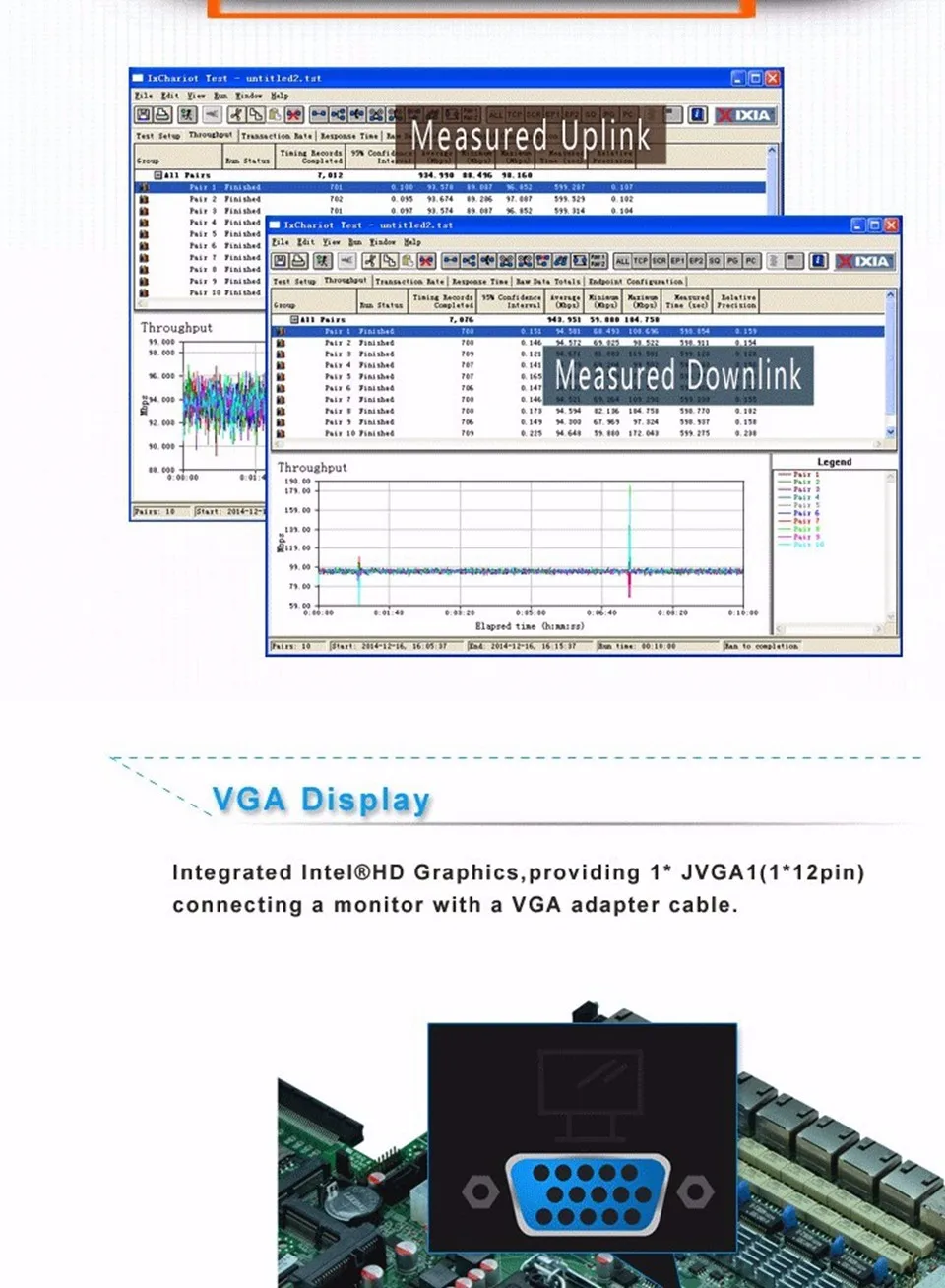

Integrated Intel®HD Graphics,support VGA display

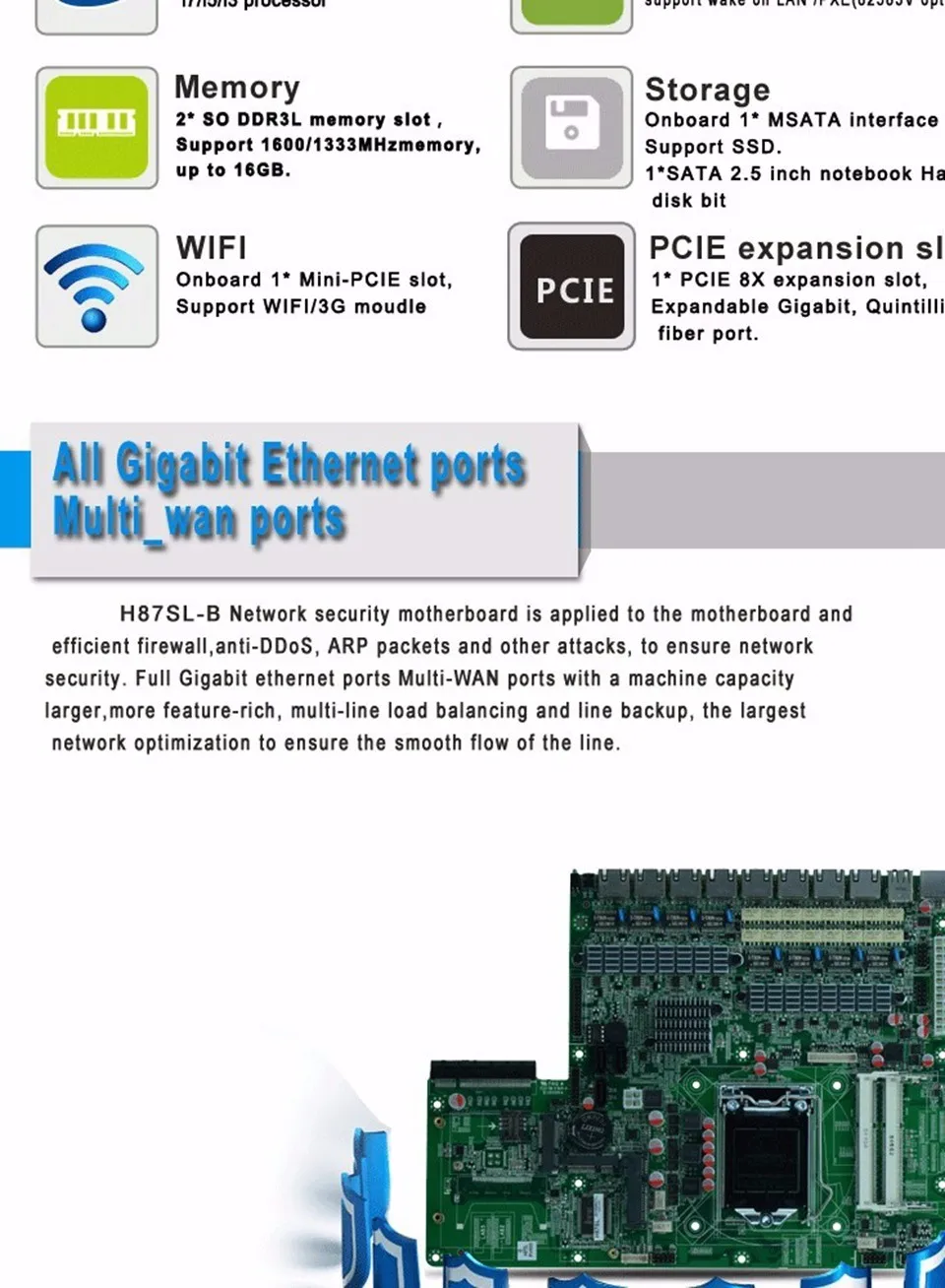

LAN

8* Intel 82574L Intel Gigabit network card chip, support network wake-up /PXE function



Integrated 2 Group BYPASS (Control LAN 1 2 and 3 4 )

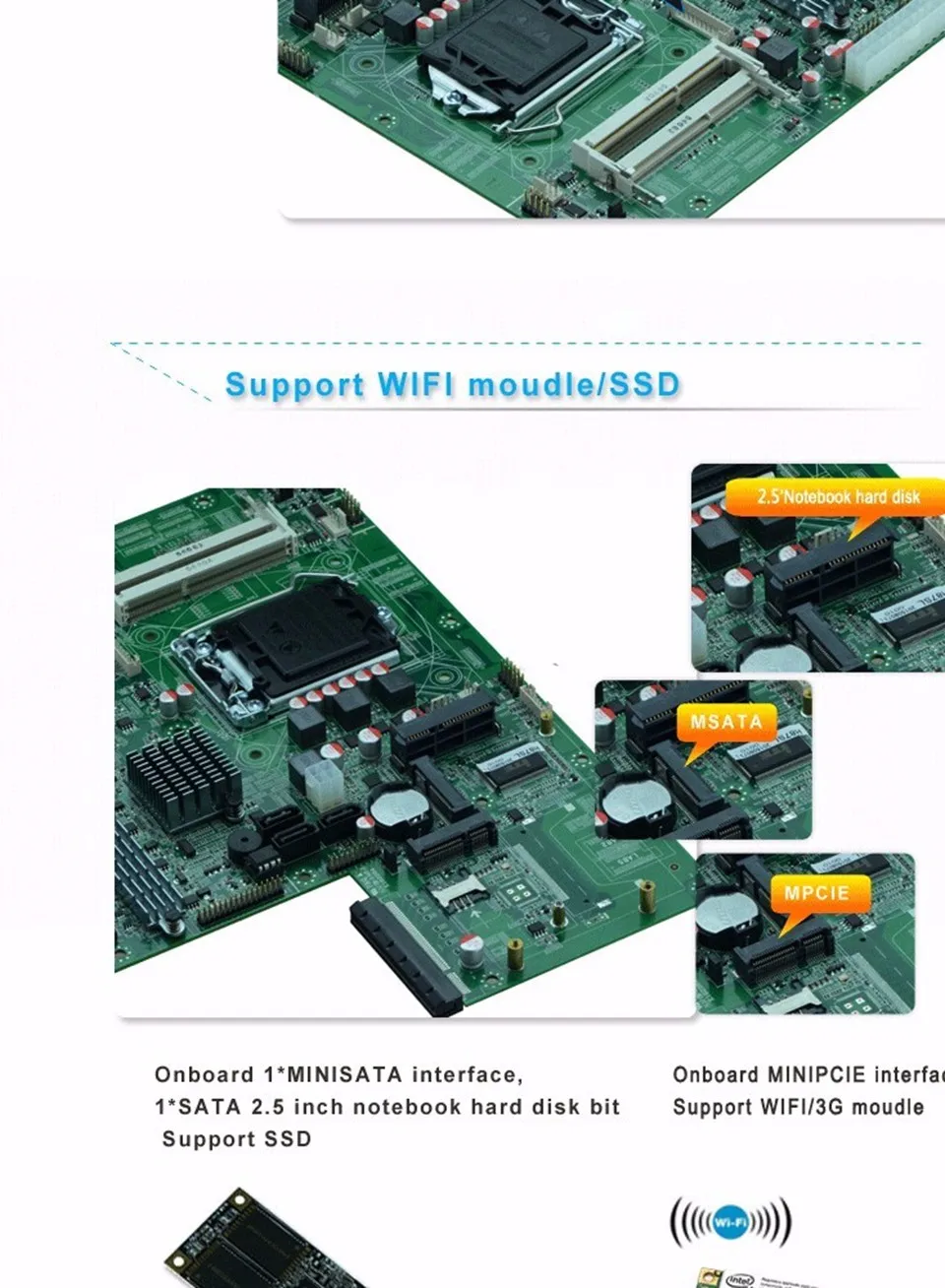

Storage

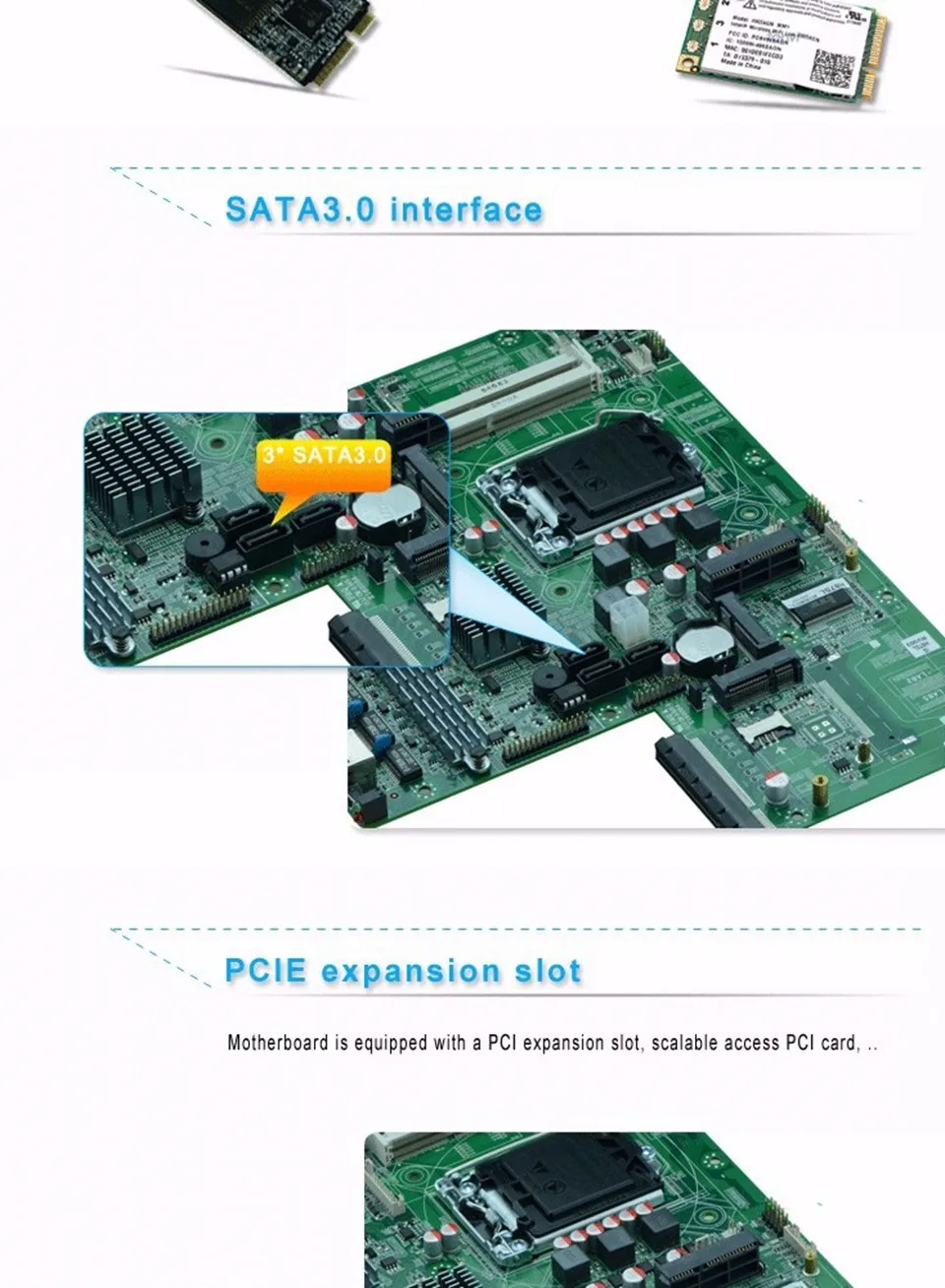

3* SATA3.0



1*SATA  2.5’ HDD space, can support HDD inboard



1* SSD MSATA Slot , support Intel protocol SSD

Expansion Slots

1* 8X PCIE slot, can extend Gigabit optical fiber port



1*Mini-PCIE slot, support 3G module

Rear I/O

2* USB2.0



8* RJ-45

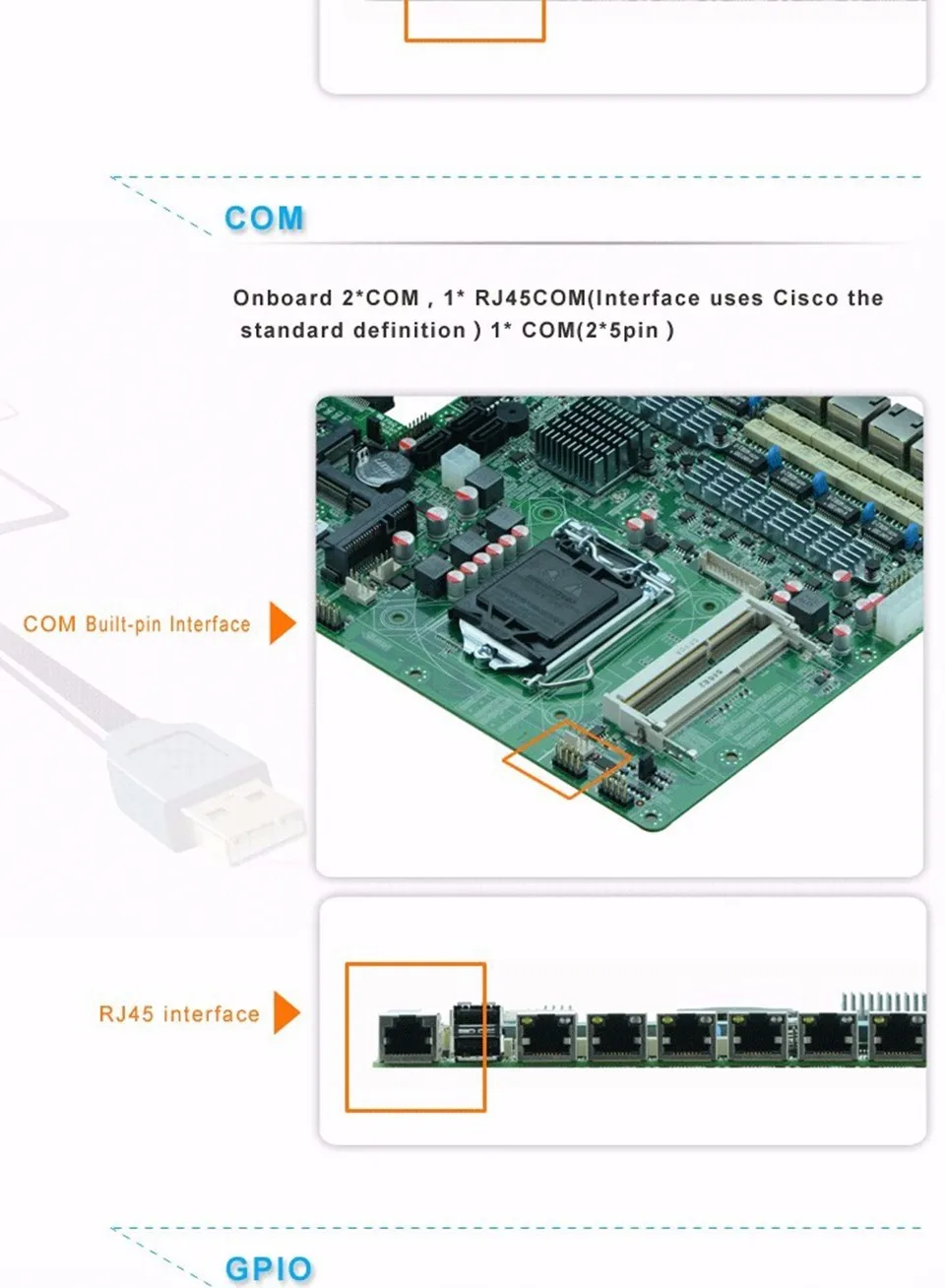

1* RJ45-DB9 COM (CISCO standard definition )



1* LED Signal indicator (Indicating power and hard drive indicator light )



1* Touch button

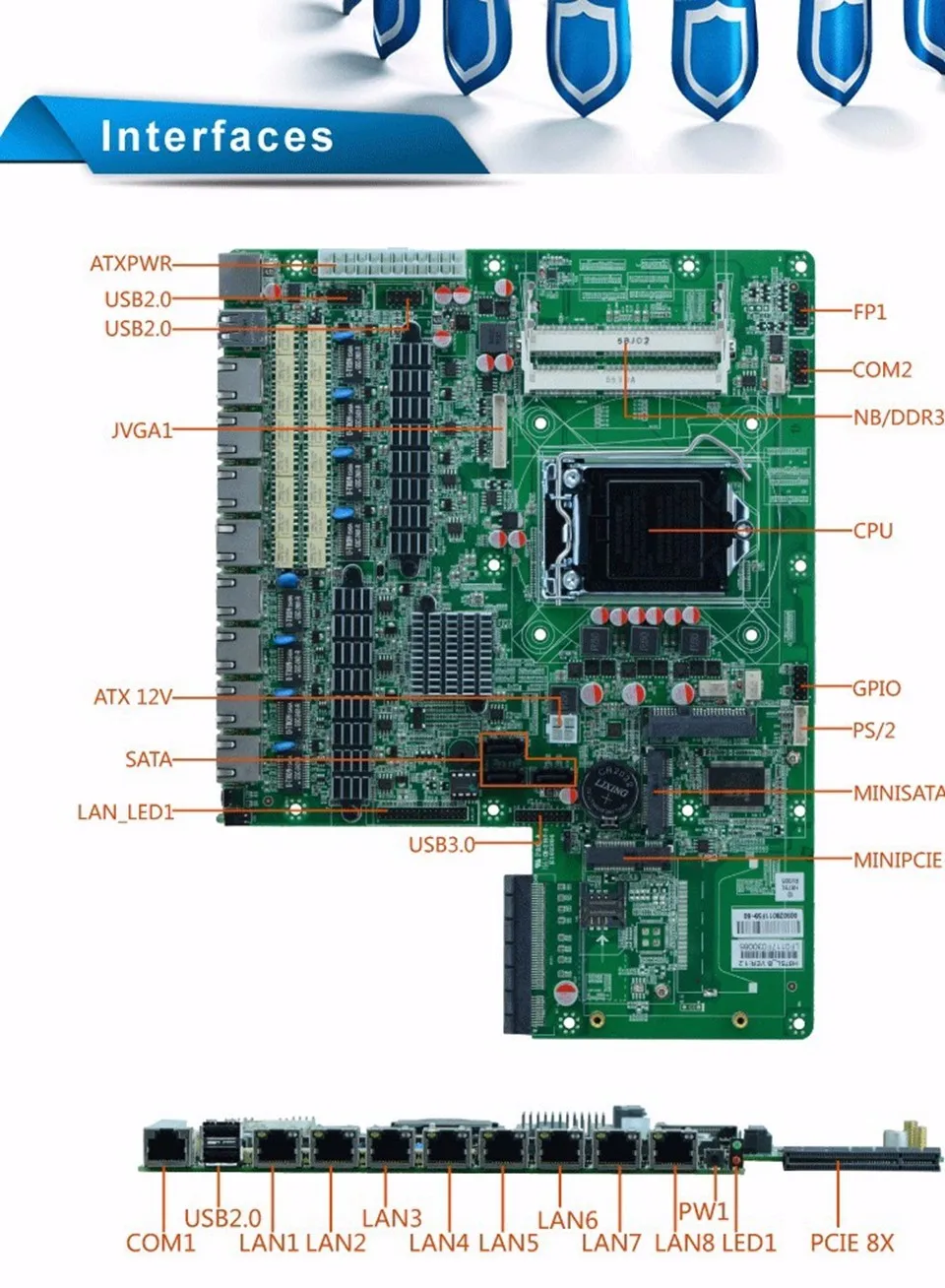

Internal I/O

1* JVGA1(2*12pin) Connection monitor with VGA adapter



1* COM (2*5pin)



1* LAN_LED 2*16pin



4* USB2.0(2*5pin )



2* USB3.0(2*10pin )



1* PS/2 (1*6Pin)



1* FP1 front panel function button and indicator connector (2*5pin)



1* ATX_24P



1* ATX_4P



1* SIM card socket

Fan Interface

2*4 CPUFAN ;1*4pin SYSFAN

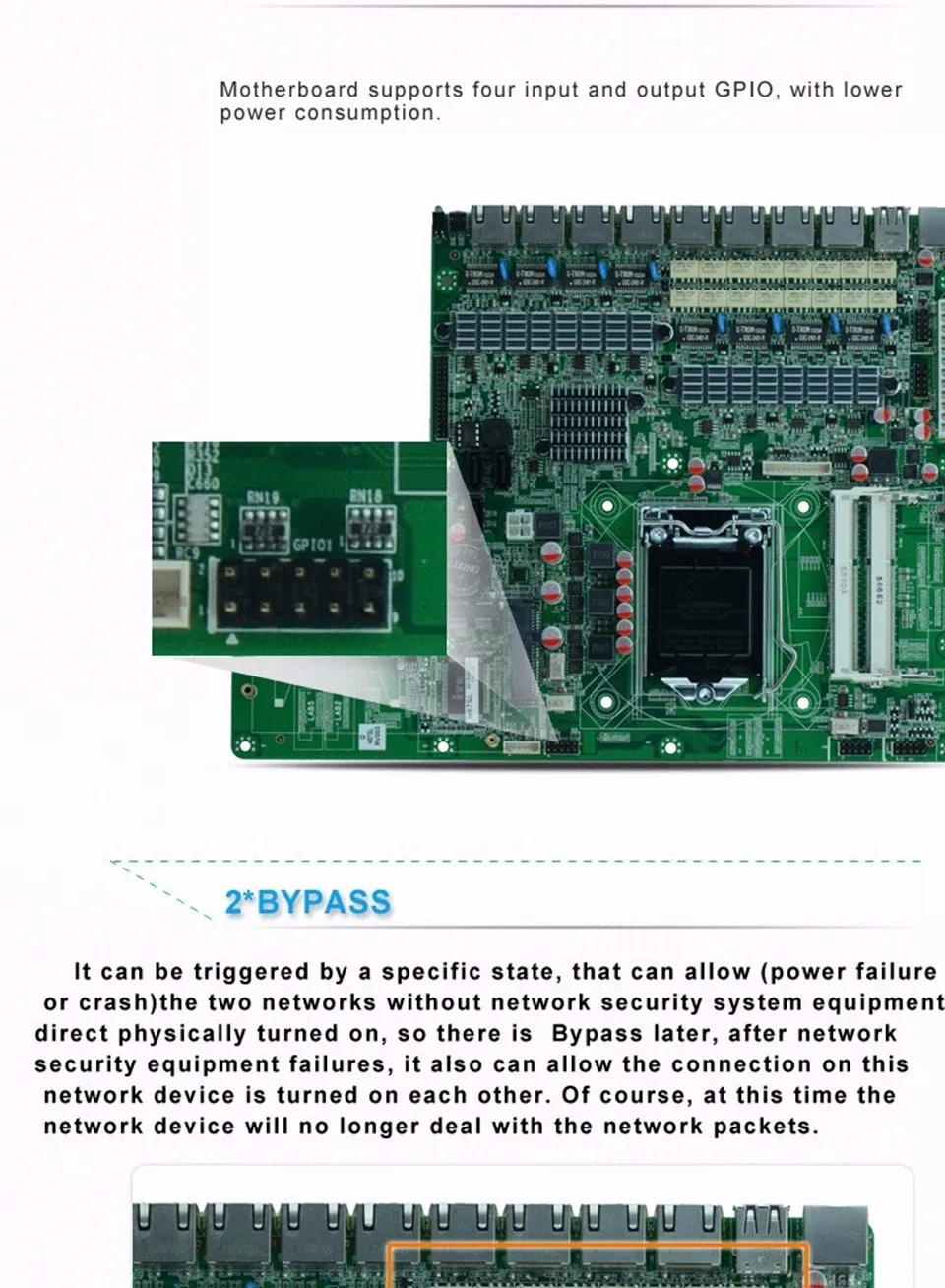

GPIO

Support 4 input and output GPIO

BIOS

AMI 64MB Flash ROM

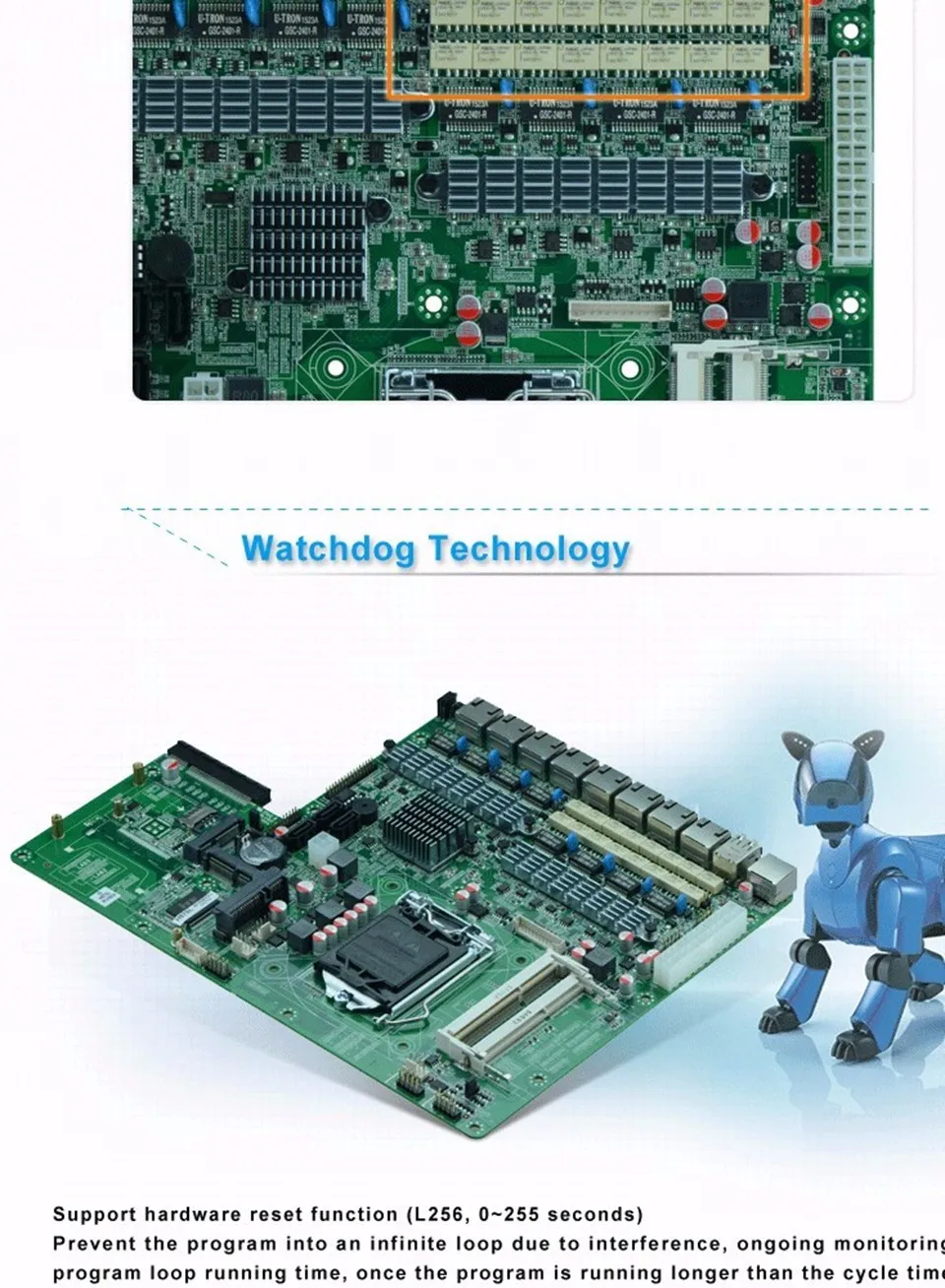

Watchdog

Support hardware reset function (L256, 0~255 seconds)

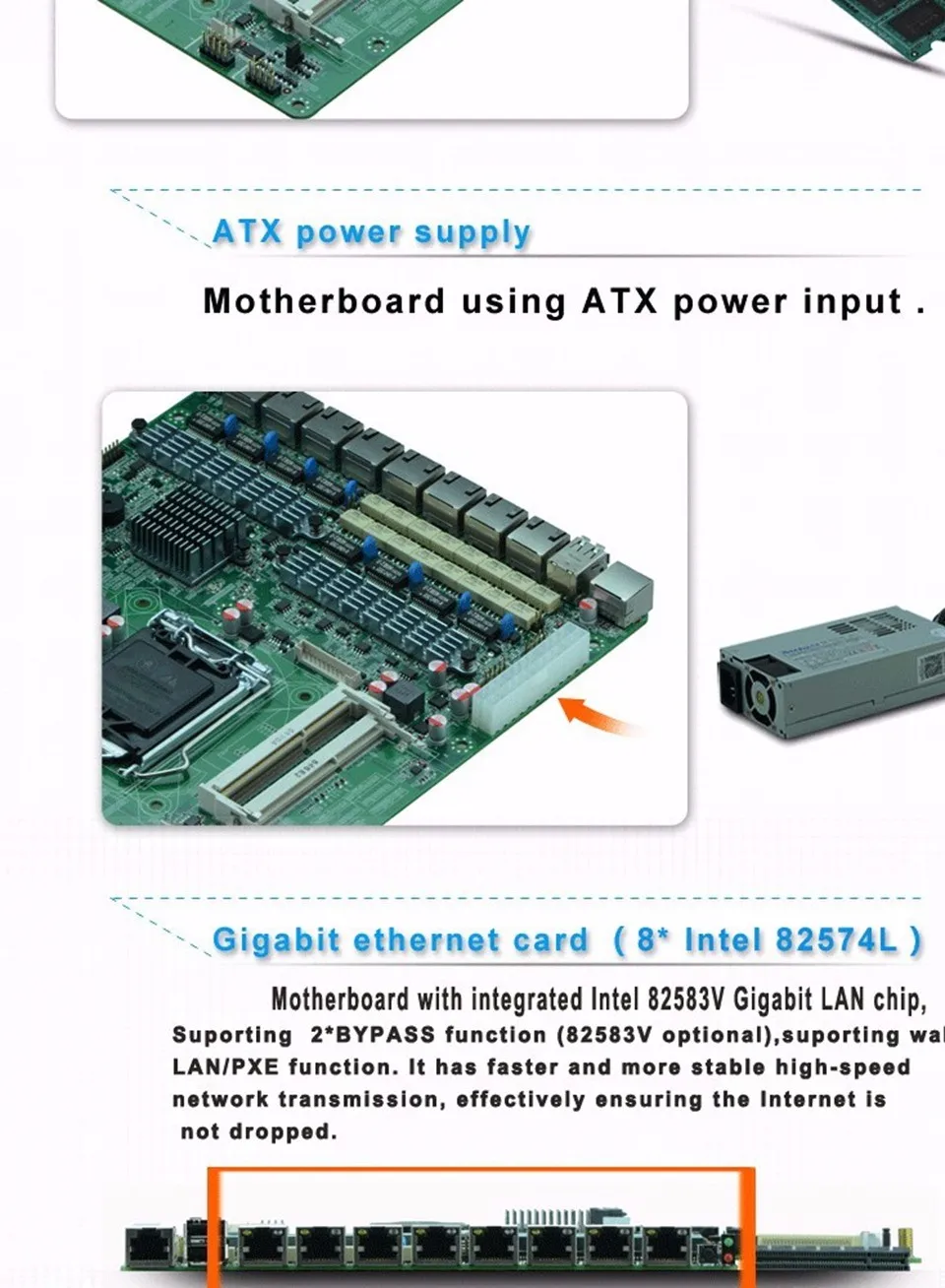

Power Input

ATX Power input

Operating Temp.

-10°C~60°C

Storage Temp.

-20°C~70°C

Humidity

5%-95% (relative humidity; non-condensing)

Dimension

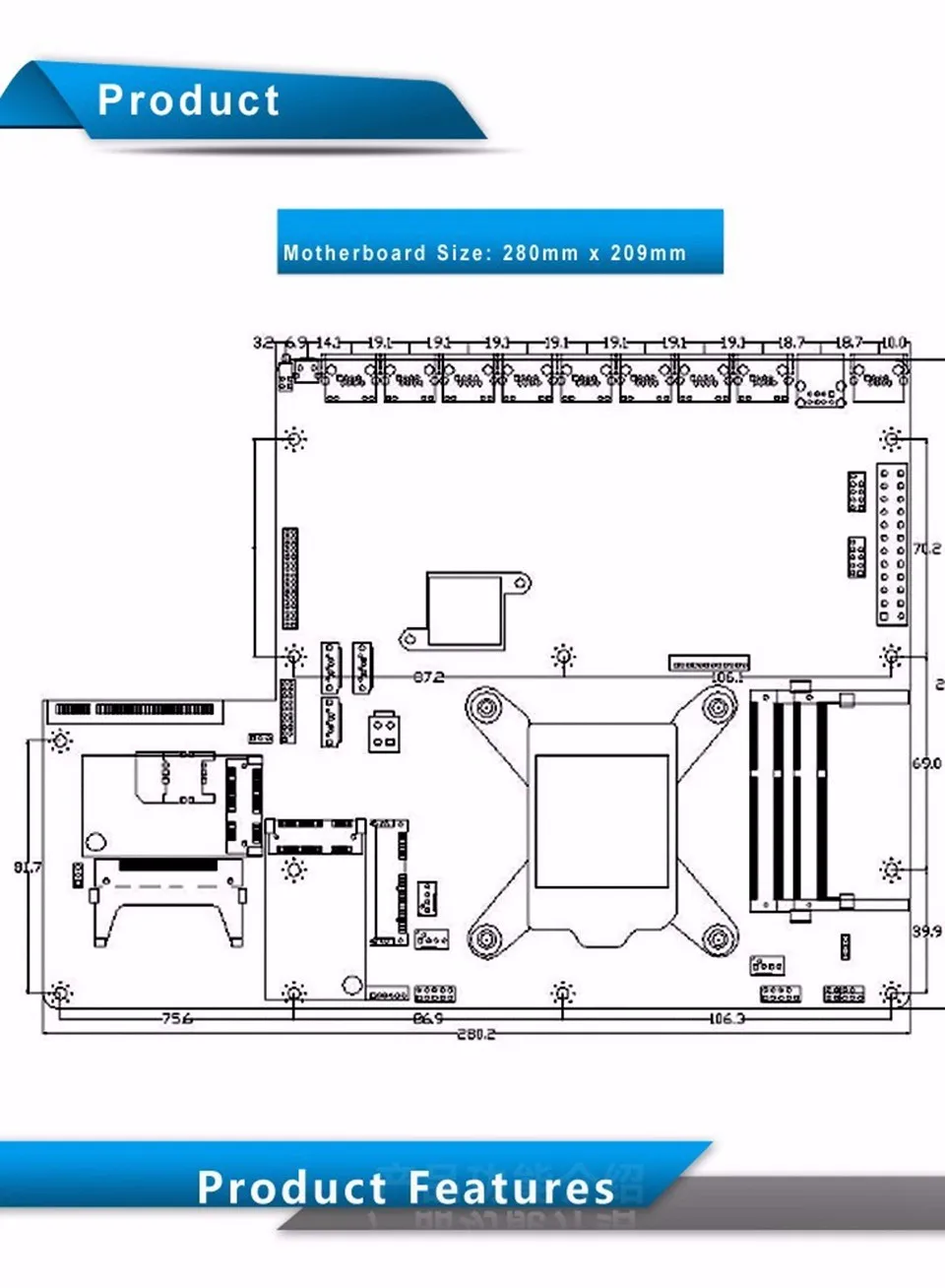

280mm x 209mm
